玄武充电器

Redlight on(Wired fast charging & wireless charging)

Cyan light on(Wired charging & wireless charging)

Green light on(wireless charging)

Orange light on(wired fast charging)

Blue light on(Wired charging)

Red light flashing(Wired and wirelesscharging methods)

Wireless light

Type-C interface*1

With five pieces of custom short cordcan be extended wired charging

￥180.00

Product Information

Technical Specifications

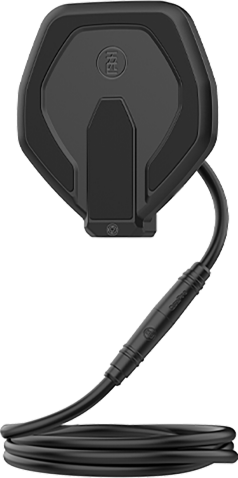

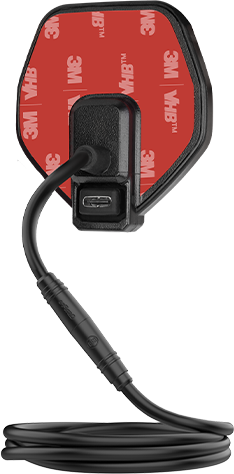

Product name：OsoPro XUANWU charger

Model number：CW51

Input：12V~20V

Wireless output：15W/10W/7.5W/5W

Wired：MAX36W(5V/3A,9V/3A,12V/3A)

Support USB Type-c

Optimum temperature：-10℃~50℃

Waterproof：IP67

Charging protocol：PD/Quick Charge 2.0/3.0/3.0+/Xiaomi CHARGETURBO 27W Huawei FCP PE USB BC1.2 DCP Apple 2.4A...（Wired and wireless charging methods）

Compatible Products

Only applicable to the OsoPro XUANWU holder series(Motorcycle use).

Wired charging needs to be used with OsoPro charging short cables

Precautions

1. If the phone case is less than 2mm thick, place the device in the center of the wireless charger panel and wait 15 to 30 seconds for charging.

2. It is recommended to charge in an ambient temperature lower than 28°C.

3. Do not disassemble, modify, or repair any part of the wireless charger by yourself, as it may affect after-sales service.

4. Do not place magnetic stripe cards, medical devices (such as pacemakers or hearing aids), or metal objects (such as keys or metal clips) near the product, as it may cause damage or abnormal operation.

5. High ambient temperatures may reduce charging power or stop charging to ensure battery and phone safety.

6. The powered device must support handshaking for wireless charging to work; some Bluetooth headsets with dual-wire interfaces cannot be charged wirelessly.

7. Not recommended for use with electric motorcycles and vehicles.

8. When a motorcycle is started, if the battery voltage exceeds 12.8V for 4 seconds, the charger will start working; if it falls below 12.5V during operation, it will enter battery protection mode until restarted and voltageexceeds 12.8V again for at least 4 seconds before resuming operation.

LINE DEMONSTRATION

With OsoPro type-c to type-c charging cables, the peak output power of the wired end can reach 36W.

The red end is connected to th The red end is connected to the positive electrode of the battery or ACC store door, and the black end is connected to the negative electrode of the battery or other negative wire.

IP67

It excels at both splash and dust protection.

Light rain splashes will not affect the use of the charger.

Waterproof

Smart sleep, making things easier.

After 180 seconds of continuous low pressure, the system enters sleep mode.

Intelligent sleep

Double charging anytime, for real.

Wireless charging and wired charging can be performed simultaneously.

Double charging port

Which charger do you prefer?

WF15-H

Check ￥180.00More >

MAx output 15W

Wireless charging

Compatibility

Input

12-17V

WF15-B

Check ￥180.00More >

MAx output 15W

Wireless charging

Compatibility

Input

12-17V

CW51

Check ￥180.00More >

MAx output 15W

Wireless charging

Max 36W[1]

Wired charging port*1

Wireless charging
MAx output 15W

Compatibility

XuanWu

Input

12-20V

Low voltage protection

Wireless charging
MAx output 15W

C72

Check ￥180.00More >

Max 36W[1]

Wired charging port*1

Wireless charging
MAx output 15W

Compatibility

CRAB

CARAPACE

CNC crab

Octopus

Input

11-20V

C36-01

Check ￥138.00More >

Max 36W[1]

Wired charging port*1

Wireless charging
MAx output 15W

Compatibility

CRAB

CARAPACE

CNC crab

Octopus

Input

11-20V

W15T

Check ￥180.00More >

MAx output 15W

Wireless charging

Max 36W[1]

Wired charging port*1

Wireless charging
MAx output 15W

Compatibility

CRAB

CNC crab

CARAPACE

Input

12-17V

To use the wired charging function, you need another OsoPro charging cables.
